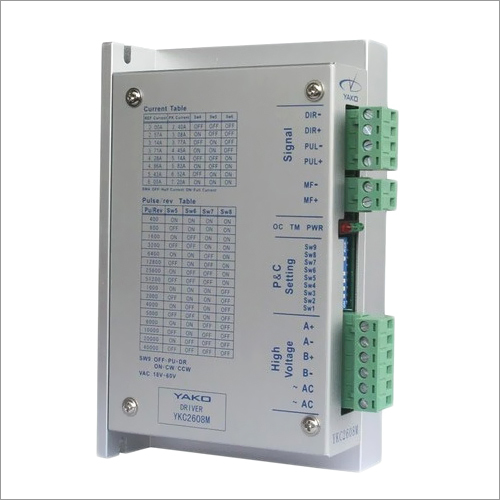

Stepper Motor Drive

Get a Price/Quote

Stepper Motor Drive Specification

Product Type
Stepper Motor Drive

General Use
Automation, CNC, Robotics

Material
ABS and Metal

Type
Microstep Motor Drive

Capacity
Suitable for up to 7.0A Motor Current

Weight (kg)
0.45 kg

Computerized
Yes

Automatic
Yes

PLC Control
Optional

Bar Feeder
No

Power Source
Electric

Power Consumption
Low Power Consumption

Rigidity
High

Voltage
24-80V DC

Motor
Hybrid Stepper Motor Compatible

Axial Choice
Single or Multi-Axis

Dimension (L*W*H)
Approx. 120 x 97 x 48 mm

Feature
Precision Positioning, Micro-Stepping

Color
Black

Humidity
40-90% RH, non-condensing

Communication Interface
Standard Pulse Input

Short Circuit Protection
Yes

Environment
Indoor Use Only

Control Mode
Open Loop

Insulation Resistance
>=500M at 500V DC

Operating Temperature
0C to 50C

Overcurrent Protection
Yes

Input Signal
Pulse/Direction/Enable

Mounting
Panel Mount

Response Frequency
Up to 200kHz input

Microstep Settings
Up to 256 subdivisions

Cooling
Natural Air Cooling

About Stepper Motor Drive

We are engaged in a business of manufacturing, trading and exporting of Stepper Motor Drive which is used to control the stepper motor. This drive is manufactured by a team of our skilled engineers with high efficiency to comply with the set international standards. It is comprised of a microprocessor, driver IC which controls the motor current and a power supply unit. Stepper Motor Drive is a circuit which has been installed in the motor to facilitate its desired operation. It is designed having a number of output pins for the stepper to connect according to the specification of the motor. This drive is specifically programmed to operate various types of stepper motor. It has been tested on various quality parameters before its final dispatch.

Features:

High Performance
Precisely engineered
Durable

Product details

Material	Mild Steel
Brand	YAKO
Model	YKC2608M
Voltage	220 V
Phase	Single Phase
Maximum Output Current	3A

Precision Microstepping for Reliable Motion Control

Achieve superior accuracy with up to 256 microstep subdivisions, enabling smooth and detailed motion in automation, CNC, and robotic projects. Designed for hybrid stepper motors, this drive ensures consistent performance, high rigidity, and optimal position control, making it ideal for applications demanding exact movements.

Robust Protection and Efficient Operation

Equipped with advanced safety features like overcurrent and short circuit protection, this motor drive maintains secure operation even under challenging indoor environments. Its natural air cooling and high insulation resistance support stable, low-power consumption units for continuous, automatic tasks.

Flexible Input and Easy Integration

Accepting standard pulse, direction, and enable signals, the drive interfaces easily with PLC systems and computerized controls. Panel mounting and compact dimensions simplify installation, while optional PLC compatibility and both single and multi-axis choices broaden its industrial utility.

FAQs of Stepper Motor Drive:

Q: How do I install the Stepper Motor Drive for optimal operation?

A: The drive is designed for panel mounting in indoor settings. Ensure ambient temperatures remain between 0C to 50C and humidity falls within 40-90% RH while avoiding condensation. Connect the drive to a compatible hybrid stepper motor (up to 7.0A), use standard pulse inputs for control, and secure all wiring according to manufacturer guidelines.

Q: What types of input signals does the drive support?

A: This drive supports Pulse, Direction, and Enable signals as input, allowing it to respond to standard control interfaces found in automation, CNC, and robotics systems. The response frequency accommodates up to 200kHz input for rapid control commands.

Q: When should I use microstepping in my application?

A: Microstepping provides finer position control and smoother motion, reducing vibration and noise. This is especially beneficial in projects requiring precise positioning, such as CNC routing, robotic arms, or detailed automation systems.

Q: Where is the best environment to operate this motor drive?

A: It is intended for indoor use only, in environments with 0C50C temperature and 4090% RH humidity (non-condensing). Proper ventilation and avoidance of excessive dust or moisture will help sustain optimal performance.

Q: What process ensures device protection during operation?

A: Integrated overcurrent and short circuit protection continuously monitor electrical loads, safeguarding the driver and connected motor from damage. High insulation resistance further prevents electrical leakage and ensures user safety during operation.

Q: How does this product benefit automation and CNC solutions?

A: Its precision microstepping feature supports intricate motion profiles, making it ideal for automation and CNC tasks demanding high accuracy. With low power consumption and high rigidity, it maximizes efficiency and reliability for both single and multi-axis controls.

Q: Can the Stepper Motor Drive be controlled by a PLC or computer?

A: Yes, the drive is compatible with PLC control (optional) and computerized automation systems. Its standard pulse interface enables seamless communication with existing setup, facilitating automatic and programmable operation.
