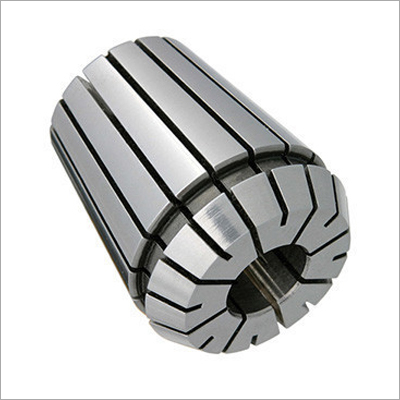

CNC Router Collet

Get a Price/Quote

MOQ : As Per Requirement Piece

CNC Router Collet Specification

Product Type
CNC Router Collet

General Use
For holding router bits in CNC routers

Material
Hardened Steel

Type
Router Bit Collet

Capacity
Available for different bit diameters (e.g., 6mm, 12mm, 1/4 inch, 1/2 inch)

Weight (kg)
Approx. 0.12 kg

Computerized
No

Automatic
No

PLC Control
No

Bar Feeder
No

Power Source
Manual

Rigidity
High

Spindle Speed
Up to 24000 rpm (depends on router)

Dimension (L*W*H)
Standard

Feature
Precision gripping for router bits, excellent concentricity, easy installation

Color
Silver

Compatibility
Fits CNC Router Spindle ER Holders

Usage
CNC Router, Milling, Engraving, Woodworking, Aluminium, Plastic

Run-out Tolerance
<0.008 mm

Packaging
Individual Plastic Boxes

Collet Standard
DIN 6499

Operating Temperature Range
Max up to 180°C

Clamping Diameter Range
Available in various sizes: 3.175mm, 6mm, 12mm, etc.

Surface Finish
Ground and Polished

Hardness
HRC 46-52

CNC Router Collet Trade Information

Payment Terms
Cheque, Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Cash in Advance (CID), Cash Advance (CA)

Delivery Time
1 Days

Packaging Details
As Per Product

Main Export Market(s)
Middle East, Africa, Asia

Main Domestic Market
All India

About CNC Router Collet

We are the prominent manufacturer and wholesaler of CNC Router Collect that are widely demanded for its user friendly nature. These machines are manufactured by using high grade components and modern techniques to meet industry standardized norms. To ensure the quality, stern punctilious verification of these machines have done by our deft professionals on various quality parameters. The provided array of tools are accessible in various specifications to meet the varied demands of our esteemed clients. Apart from this, clients can avail the entire range of CNC Router Collect from us at leading-market prices.

CNC Router Collet is designed with high precision using the best quality of alloy metal. It is used to hold various engraving tools such as router bits for 2D cutting and 3D engraving on various materials. This collet is installed in CNC router machine to provide a platform for drill bits to be fitted in them. It is also known as a tool holding system which is made up of six components which are collet clamping surface, spindle and collet taper, external collet and tool holder taper, clamping nut surfaces, thrust bearings and tool holders.a

Features:

Robust construction
Smooth functioning
Long service life
Corrosion resistant

Specifications:

We are supplier of CNC router collect like ER32 ER25 ER20 and many more.

Product details

Usage	Clamping
Length	Up to 15 mm
Body Material	SS
Surface Finished	Polished
Diameter	Up to 7 mm

Precision Engineering for Consistent Performance

Engineered to DIN 6499 standards, this router collet guarantees precision with a maximum run-out tolerance of less than 0.008 mm. The ground and polished finish not only enhances durability but also ensures smooth and accurate gripping of router bits. Its robust hardness (HRC 46-52) and high rigidity help deliver stable machining results across various applications, including CNC routing, engraving, and milling.

Versatile Clamping Solutions

With compatibility for multiple clamping diameterssuch as 3.175mm, 6mm, and 12mmthis collet meets the needs of diverse CNC operations. Designed for manual use and packaged individually, it is ideal for woodworking, aluminium, and plastic machining projects. It fits ER spindle holders in standard CNC routers, delivering flexibility and reliability in various industrial contexts.

FAQs of CNC Router Collet:

Q: How do I install the CNC Router Collet in my CNC router?

A: Installation is straightforwardsimply insert the collet into your CNC routers ER spindle holder, ensuring the bit is securely placed inside the collet. Tighten the collet nut evenly to achieve a stable and precise grip. Always consult your machines manual for detailed procedures.

Q: What materials can I machine using this router collet?

A: This collet is suitable for machining a wide range of materials, including wood, aluminium, and various plastics. Its high rigidity and hardness ensure reliable gripping and control in demanding applications like routing, engraving, and milling.

Q: When should I replace my router collet?

A: Replace the collet if you notice an increase in run-out, decreased gripping force, surface wear, or visible damage. Regular inspection is recommended to maintain consistent performance and prevent damage to your CNC router or bits.

Q: Where can I use this CNC router collet?

A: This collet is compatible with CNC routers equipped with ER spindle holders and can be used in professional workshops, manufacturing plants, educational labs, and service centers engaged in woodworking, metalworking, or plastics processing.

Q: What are the benefits of using a DIN 6499 standard router collet?

A: DIN 6499 standard ensures high concentricity and minimal run-out (less than 0.008 mm), resulting in greater machining accuracy, extended tool life, and improved surface finishes on your workpieces.

Q: How do I select the right collet size for my application?

A: Choose the collet size that matches the shank diameter of your router bit. Common sizes include 3.175 mm, 6 mm, and 12 mm. Proper sizing is vital for secure and precise clamping, which helps prevent bit slippage and ensures optimal performance.

Q: What process ensures the collets durability and precision?

A: Each collet is manufactured from hardened steel (HRC 46-52) and undergoes a ground and polished surface treatment. This process maximizes rigidity, wear resistance, and precision gripping for demanding CNC applications.
