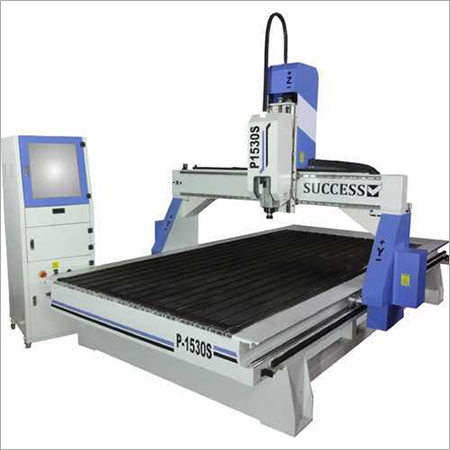

Wooden Pattern Making Machine

Get a Price/Quote

MOQ : 1 Unit

Wooden Pattern Making Machine Specification

Product Type
Wooden Pattern Making Machine

General Use
Wooden Pattern Manufacturing, Industrial Workshop

Material
Cast Iron, Mild Steel, Hardwood

Type
Horizontal

Capacity
Up to 200 kg

Weight (kg)
700 kg

Computerized
No

Automatic
Semi-automatic

PLC Control
Available (Optional)

Bar Feeder
Not included

Power Source
Electric

Power Consumption
2.5 kW

Rigidity
High

Voltage
415 V

Motor
Heavy Duty Induction Motor

Table Size
900 mm x 400 mm

Spindle Speed
1500 RPM

Axial Choice
Manual and Automatic

Dimension (L*W*H)
1450 mm x 750 mm x 1200 mm

Feature
Precision Machining, Pattern Accuracy, Durable Construction

Color
Industrial Grey

Phase
Three Phase

Coolant System
Integrated

Pattern Finish
Smooth & Accurate

Chuck Size
250 mm

Safety Features
Emergency Stop, Overload Protection

Noise Level
Low (<80 dB)

Operating Temperature Range
5°C to 45°C

Maximum Cutting Depth
125 mm

Operator Training
Available upon request

Lubrication
Centralized Automatic

Accessories Provided
Pattern Templates, Vise, Tool Kit

Wooden Pattern Making Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)

Delivery Time
4 Week

Packaging Details
As Per Product

Main Export Market(s)
Middle East, Africa, Asia

Main Domestic Market
All India

Certifications
As Per Product

About Wooden Pattern Making Machine

We owns a trustworthy organization that is one of the reliable manufacturer and wholesaler of the Wooden Pattern Making Machine. This machine is the best choice for who want to do 2D cutting & 3D engraving for wooden industries and to work with Acrylic, Wood, ACP, Brass, Aluminum, Foam board, Mdf, etc. Our machines are manufactured by using basic grade components with the help of progressive techniques to meet clients end. These machines are known for their foremost execution, rigidity and high ductile capability. Also, the user affable systems of our Wooden Pattern Making Machine is available at market leading prices.

Features :

Least maintenance
Flexible function
Tensile strength
Smooth performance

Technical Specifications :

Working (X, Y, Z)	1500 X 3000 x 500 mm
Spindle Motor	6 KW (Air Cooled) or as per applications
Maximum Running Speed (without load)	25 m/min
Rotating Speed of Tool	0-18000 RPM
Engraving Tools	3, 4, 6, 12.7 mm
Dictate Format	HPGL, G-Code
Repeated Location	0.025 mm
Driving System	Servo Motor (Optional : Stepper Motor)
Operating System	PCI Based Controller (Optional:DSP Hand Held Controller)
Power Supply	AC 420V/3PH

Precision and Durability in Pattern Manufacturing

Designed for demanding industrial environments, this Wooden Pattern Making Machine offers exceptional precision, pattern accuracy, and durability. Its robust construction combines cast iron and mild steel with advanced features like centralized lubrication and a heavy-duty motor. Coupled with an integrated coolant system and a smooth, accurate finish, it ensures superior results with every use.

Worker Safety and Ease of Operation

Safety is paramount with dedicated features like an emergency stop and overload protection. The three-phase, semi-automatic nature ensures stable operation, while minimal noise preserves the working environment. Accessories and comprehensive operator training make it straightforward to use, boosting productivity and reducing learning curves.

Versatility and Superior Performance

With a powerful spindle capable of 1500 RPM and flexible axial control (manual/automatic), the machine caters to a variety of wooden pattern applications. Capable of handling up to 200 kg and working within a wide temperature range, it is suitable for both manufacturers and service providers in the wooden pattern industry.

FAQs of Wooden Pattern Making Machine:

Q: How does the integrated coolant system benefit the operation of the Wooden Pattern Making Machine?

A: The integrated coolant system keeps the cutting tool and workpiece at optimal temperatures during operation, reducing heat buildup. This enhances both the lifespan of the cutting tools and the quality of the finished wooden patterns by preventing thermal distortion.

Q: What materials can be processed with this machine, and what is its maximum cutting depth?

A: You can use this machine to manufacture patterns from cast iron, mild steel, and hardwood. It features a maximum cutting depth of 125 mm, making it suitable for a variety of industrial pattern applications.

Q: Where can this machine be installed, and what are the electrical requirements?

A: The machine is ideal for industrial workshops or pattern manufacturing facilities. It operates on a three-phase electric supply with a voltage of 415 V and consumes 2.5 kW of power, ensuring compatibility with standard industrial electrical setups.

Q: What kind of safety features are included, and how do they protect the operator?

A: Safety is prioritized with features like an emergency stop and overload protection, which help prevent accidents and protect the operator in case of unexpected events or equipment overloads.

Q: When is operator training available and how does it enhance effective operation?

A: Operator training can be arranged upon request at the time of purchase or installation. Comprehensive training ensures users understand all features, safety protocols, and operational best practices, promoting efficient and safe machine use.

Q: What accessories are provided with the machine, and how do they support the pattern making process?

A: The machine comes equipped with pattern templates, a vise, and a tool kit. These accessories facilitate accurate setup, secure workpiece clamping, and provide essential tools for regular machine maintenance and smooth operation.

Q: What are the benefits of the sturdy construction and low noise level in daily usage?

A: The machines robust design with high rigidity ensures long-lasting durability and consistent performance. Its low noise operation (<80 dB) creates a more comfortable work environment, reducing operator fatigue and allowing quieter workshop conditions.
