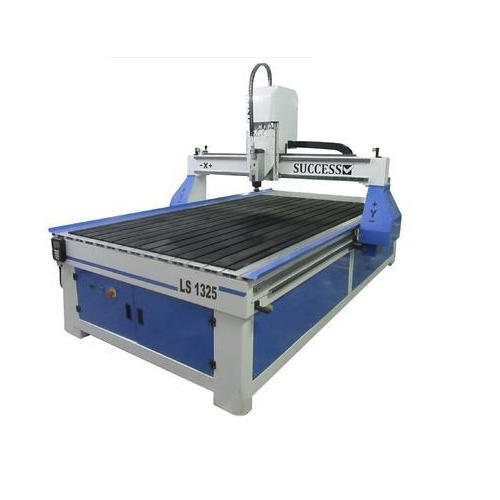

Advanced CNC Engraving Router Machine

Get a Price/Quote

Advanced CNC Engraving Router Machine Specification

Product Type
CNC Engraving Router Machine

General Use
Wood, Acrylic, MDF, PVC, Aluminum Engraving and Cutting

Material
Steel frame, Aluminum Table

Type
Other

Weight (kg)
Approx. 1000 kg Kilograms (kg)

Computerized
Yes

Automatic
Yes

Bar Feeder
No

Power Source
Electric

Power Consumption
3.5 kW Kilowatt (kW)

Rigidity
High

Voltage
220V/380V (Optional) Volt (v)

Table Size
1300 x 2500 mm

Spindle Speed
0 24000 RPM RPM

Axial Choice
3 Axis

Dimension (L*W*H)
1950 x 3050 x 1460 mm Millimeter (mm)

Color
Blue & White

Transmission
High Precision Gear Transmission

Repeat Accuracy
0.02 mm

Cooling System
Air/Water Cooling (Optional)

Driving System
Rack and Pinion for X and Y axis, Ball Screw for Z axis

Software Compatibility
ArtCAM, Ucancam, Type3, CorelDraw

Resolution
0.01 mm

Lubrication
Automatic Lubrication System

Spindle Power
3.2 kW Air cooled

Rail Guide
Linear Square Rail

Working Environment
Temperature 0-45C, Humidity 30%-75%

Workpiece Thickness
Max 200 mm

Data Interface
USB/Ethernet

About Advanced CNC Engraving Router Machine

Cnc Engraving Router Machine

With the support of our expert team, we are manufacturing and exporting an exclusive range of CNC Engraving Router Machine. These machines are assembled in accordance with global industry standards at well equipped production unit by utilizing excellent quality components. This machine is used in several industrial applications like engraving rough materials along with routing with the help of advances CNC controlling panels. This CNC Engraving Router Machine is available in various power capacity ranges at pocket friendly price.

Features:

Saves electricity
No wastage of raw material
Easy to install

Technical Specifications :

MODEL	ST1325 / ST1325V
Working (X, Y, Z)	1300 X 2500 x 200 mm
Spindle Motor	HSD 6KW air-cooled spindle motor from Italy
Motion Speed	25000 mm/min
Rotating Speed of spindle	0-18000 rpm
Engraving Tool	3.175, 4, 6, 12.7 mm
Dictate Format	HPGL, G-code
Resolution	0.025mm

Precision and Versatility Combined

This CNC engraving router stands out for its exceptional accuracy and reliable operation, catering to a wide range of applications from fine engraving to heavy-duty cutting. Its large-format table and advanced drive systems support substantial workpieces, while the compatibility with popular design software ensures seamless workflow integration.

Advanced Engineering for Robust Performance

Built with a steel frame and aluminum table, the router resists vibration, enabling smooth, stable, and quiet operation. Key mechanics, like linear square rail guides and high-precision gear transmission, provide durability, while the automatic lubrication system ensures consistent maintenance and extended machine life.

Flexible Control and Cooling Options

Operators can choose DSP, Mach3, or NC Studio controllers for tailored machine management. Air or water cooling options cater to varying job requirements, further enhancing performance. The machines energy-efficient design, running on either 220V or 380V, allows flexibility for different industrial environments.

FAQs of Cnc Engraving Router Machine:

Q: How does the CNC Engraving Router ensure high precision during operation?

A: The machine employs linear square rail guides, a high-precision rack and pinion system for X and Y axes, and a ball screw for the Z axis. This combination, along with automatic lubrication and gear transmission, achieves a resolution of 0.01 mm and a repeat accuracy of 0.02 mm.

Q: What materials can be processed with this CNC router machine?

A: This CNC router is suitable for engraving and cutting a range of materials, including wood, acrylic, MDF, PVC, and aluminum, making it versatile for various manufacturing and design needs.

Q: When should I opt for air cooling versus water cooling for the spindle?

A: Air cooling is generally sufficient for routine tasks and lighter loads, whereas water cooling is recommended for prolonged, intensive jobs or when working in warmer environments, ensuring optimal spindle performance and longevity.

Q: Where can I use this CNC router machine?

A: Ideal for factories, workshops, and professional service providers in India, the machine operates reliably in environments with temperatures from 0-45C and humidity levels between 30% and 75%.

Q: What is the process for interfacing design files with the router?

A: Design files created in compatible software such as ArtCAM, Ucancam, Type3, or CorelDraw can be transferred to the router via USB or Ethernet, allowing hassle-free job setup and execution.

Q: How does the automatic lubrication system benefit users?

A: The automatic lubrication system delivers precise lubrication to key moving components, reducing wear, minimizing maintenance effort, and ensuring consistent high performance throughout prolonged operation.

Q: What are the main benefits of using this CNC router for large format work?

A: Users benefit from high stability, low noise, excellent precision over large areas (1300 x 2500 mm), and the ability to handle thick workpieces (up to 200 mm), all while maintaining operational efficiency and quality.
